Marine Steam Engine. SVS001

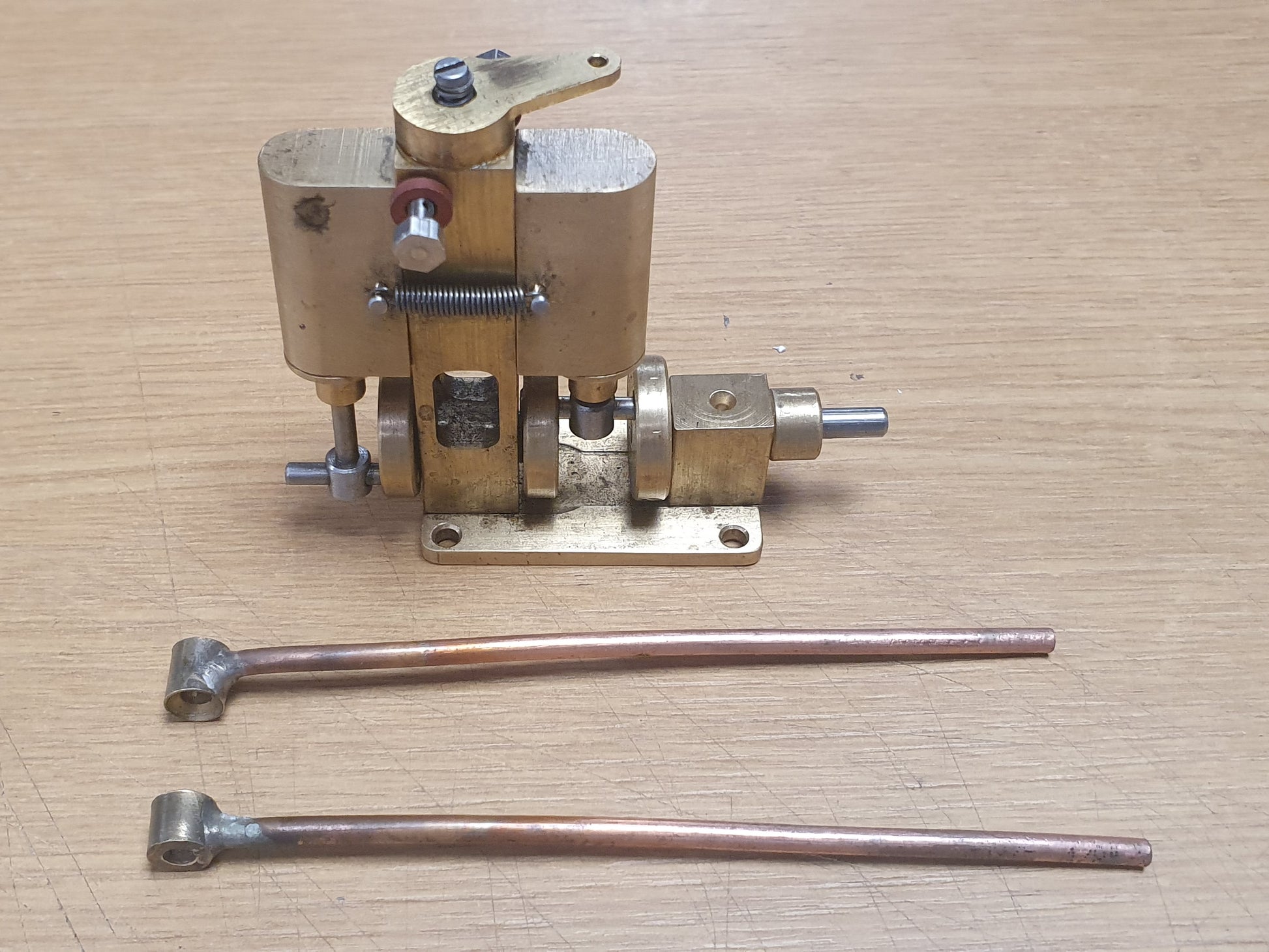

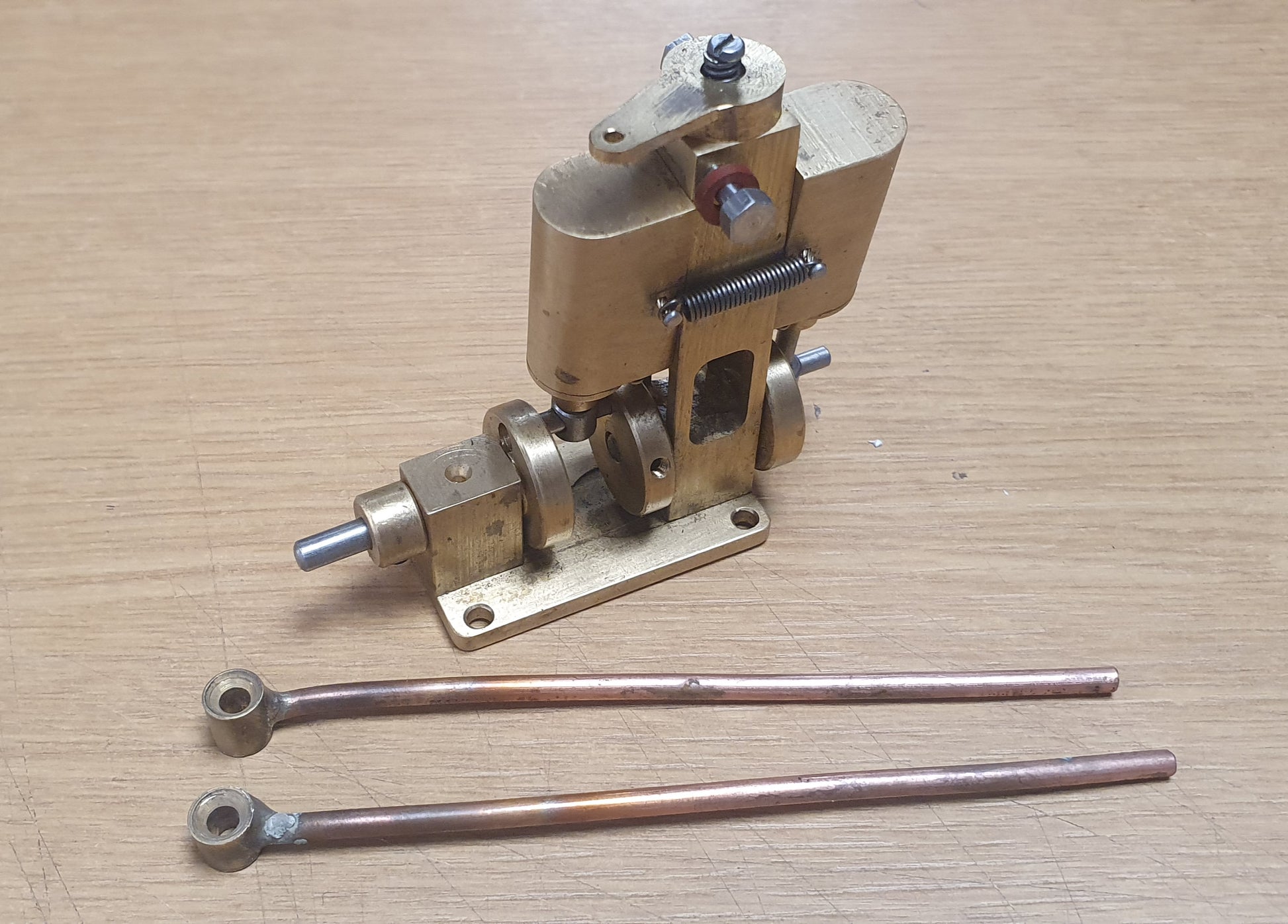

SVS Marine steam engine -fully finished & tested & ready to run. Twin cylinder - double acting reversing - self starting. All made and assembled in Lincoln.

Specifications. 8mm bore 12 mm stroke silicon o rings seals on cylinder end cap and piston. Piston rods and drive all manufactured from stainless steel. All other materials are made of brass. Base size 1" x 1/3/4" (25 x 45mm0 Total length 3" (75 mm) Height 2.3/4" (70mm)

Length across cylinders 1.3/4" (45mm) Steam control valve on top of engine (forward & reverse speed) 4mm out put drive shaft. Steam & exhaust pipe 1/8" copper tube. Working pressure up to 45psi (3 bar) .
